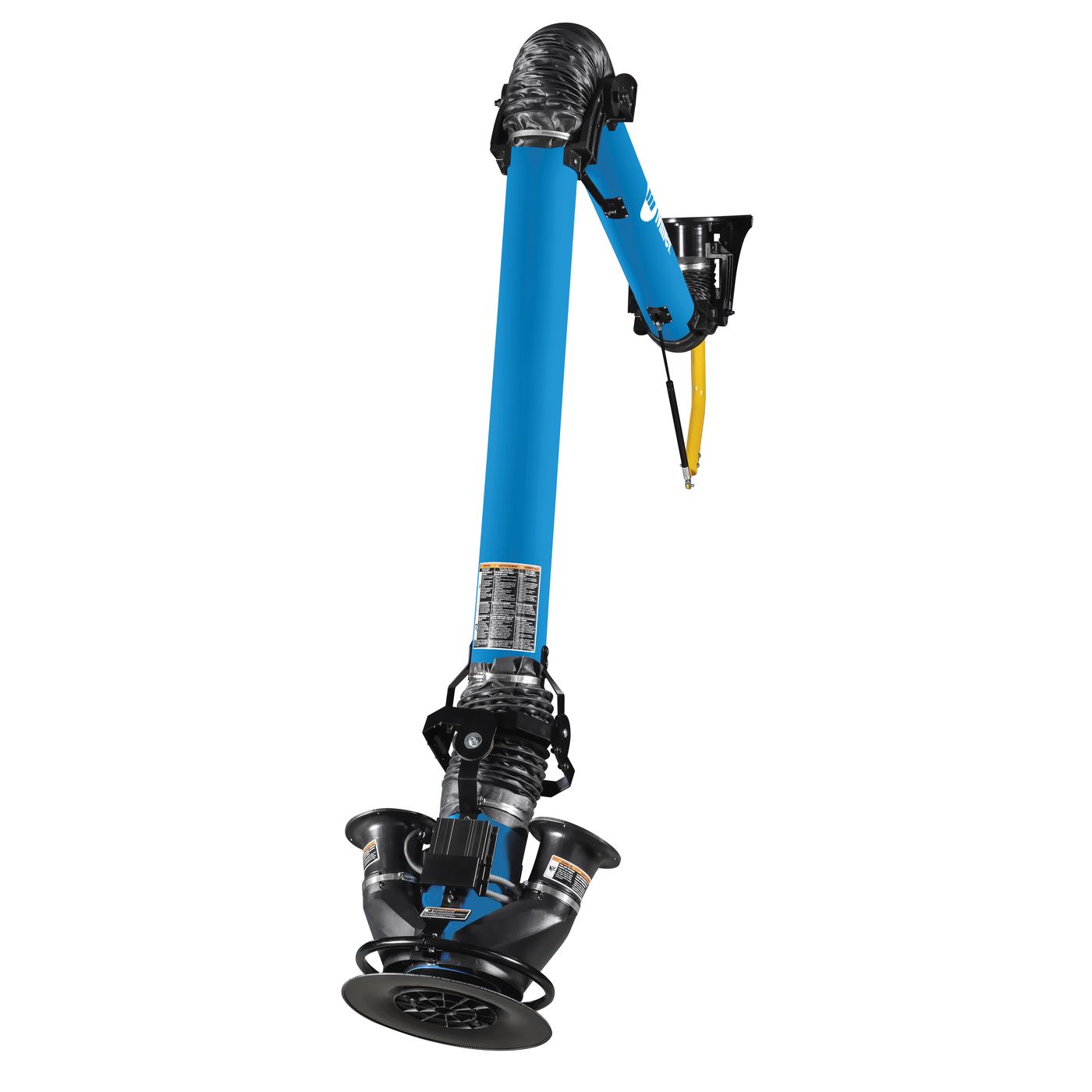

951811 - Miller FILTAIR ZoneFlow 12ft Extraction Arm Wall Mount

Advanced Fume Capture Technology

The Miller FILTAIR® Fume Extraction Arm (951811) represents a significant leap in industrial hygiene technology. Engineered with Miller's proprietary ZoneFlow™ Technology, this 6-inch by 12-foot arm creates a negative pressure zone that extends the particulate capture area to approximately 5 feet from the hood. This is roughly three times the effective capture distance of traditional source-capture arms. By expanding the capture zone, the system allows welders to continue working across larger weldments without the frequent interruption of repositioning the extraction hood, thereby maintaining arc-on time and operational efficiency.

High-Performance Airflow Dynamics

At the core of this extraction system is a high-performance fan capable of generating 1,200 CFM of airflow. Even after accounting for static pressure losses through the arm and ducting, the system delivers an Accu-Rated™ minimum of 875 CFM at the hood intake. This class-leading suction power ensures that hazardous welding fumes, including hexavalent chromium and manganese, are effectively removed from the operator's breathing zone. The arm itself is designed with external adjustments, a critical engineering choice that removes internal obstructions from the airstream. This design not only reduces turbulence and pressure drop but also simplifies maintenance by keeping adjustment mechanisms outside the contaminated air path.

Versatile Integration and Installation

The 951811 model is designed for versatility in industrial environments. It comes preassembled for rapid deployment and is compatible with various mounting configurations, including wall, pedestal, or column mounts. While it functions as a standalone extraction point when paired with the appropriate blower, it is also fully engineered to integrate seamlessly with Miller's FILTAIR® SWX systems or larger centralized fume extraction networks. The unit operates on standard 110/115/120 V single-phase power, making it accessible for most facility electrical grids without the need for specialized high-voltage drops. The ZoneFlow motor control box is included, providing precise control over the capture zone functionality.
