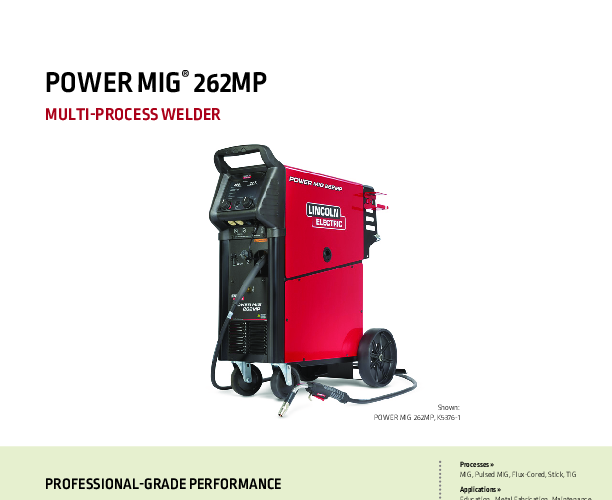

K5638-1 - Lincoln POWER MIG 262MP Aluminum Push-Pull Package

Professional Aluminum Welding Solution

The Lincoln Electric POWER MIG® 262MP Aluminum One-Pak® (K5638-1) represents a significant leap forward in the category of compact industrial multi-process welders. Designed specifically for fabricators who demand precision and versatility, this package is distinguished by the inclusion of the Magnum® PRO AL Front Trigger G225A Push-Pull Gun. This specialized gun works in tandem with the machine's internal drive to actively pull soft aluminum wire while the machine pushes, eliminating the bird-nesting and feeding issues common with standard MIG guns. With a maximum output of 300 Amps, this machine provides the power needed for heavy-duty applications while maintaining the finesse required for thin gauge materials.

Advanced Digital Control

At the heart of the 262MP is a 7-inch color display that serves as the command center for Lincoln's proprietary technologies. The Ready.Set.Weld® system simplifies the setup process, allowing operators to input material thickness and wire type to receive optimized parameters instantly. For more experienced welders, ArcFX® technology offers a visual representation of how changes in wire feed speed and voltage will affect the weld bead profile, bridging the gap between parameter settings and physical results. The interface also supports Weld Set Memory, enabling users to save and recall specific procedures for repeat jobs, ensuring consistency across shifts and operators.

Superior Multi-Process Performance

While optimized for aluminum via its dedicated Pulse Process—which welds 4XXX and 5XXX series aluminum with superior quality and reduced porosity—the 262MP is a true multi-process workhorse. It excels at MIG, Flux-Cored, Stick, and DC TIG welding. The Stick mode is specifically optimized for 6010 and 6011 cellulosic electrodes, providing the digging arc characteristics preferred by pipe and structural welders. The Synergic Control feature further streamlines operation by allowing weld procedures to be set with a single control knob, automatically adjusting voltage and wire speed in unison.

Industrial Build Quality

Reliability is ensured through the rugged MAXTRAC® Industrial Wire Drive, a heavy-duty cast aluminum system that delivers constant wire feed speed and consistent welds. The unit accepts universal input voltage (208/230/460/575V), making it adaptable to various shop environments. This One-Pak® is a comprehensive turnkey solution, arriving with everything needed to start welding aluminum and steel immediately, including regulators, cables, and drive rolls for multiple wire sizes.
