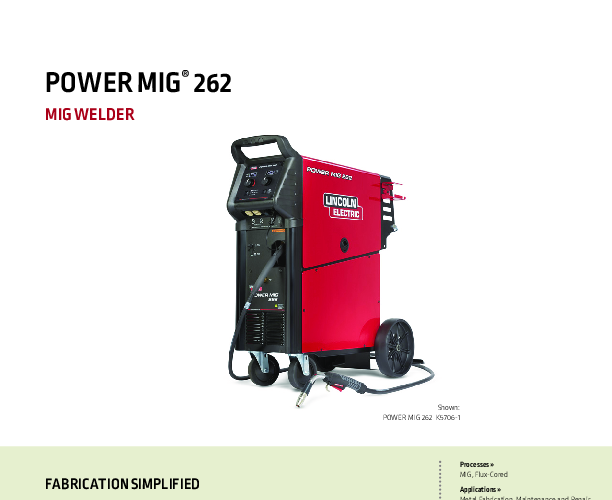

The Lincoln Electric POWER MIG® 262 (K5706-1) sets a new benchmark for professional MIG and Flux-Cored welding in the light industrial sector. Designed to replace the legacy Power MIG 256, this machine combines a powerful 300-amp maximum output with a simplified, modern user interface. It is engineered for welders who demand reliability, consistency, and ease of use in environments ranging from maintenance shops to vocational training centers.
At the heart of the POWER MIG 262 is its streamlined digital interface. The machine features a clear seven-segment display and intuitive knob controls that allow operators to easily set wire feed speed and voltage. This digital feedback ensures precise parameter settings, reducing setup time and improving weld quality. The interface also provides quick access to advanced settings such as run-in, pre-flow, post-flow, and spot timers, giving the operator total control over the arc start and finish.
Lincoln Electric has equipped the POWER MIG 262 with the renowned MAXTRAC® Wire Drive system. This heavy-duty, cast aluminum wire drive features a dual-driven roll design that delivers consistent wire feeding, minimizing tangles and bird-nesting. The split wire guide system and tool-less drive roll changes make maintenance quick and effortless. Whether you are running solid mild steel wire or flux-cored wire, the MAXTRAC system ensures smooth delivery for superior arc stability.
This machine is a true workhorse for metal fabrication. It supports standard MIG (GMAW) and Flux-Cored (FCAW) processes out of the box. Additionally, it is "Spool Gun Ready," featuring built-in circuitry to support the optional Magnum® 250LX spool gun or a push-pull gun for high-quality aluminum welding. With an input power range covering 208V to 575V single-phase, the POWER MIG 262 adapts to various shop power configurations without hassle.
| Additional Information |
|---|
| Brand:Lincoln Electric |
| Amperage:300 |
| Voltage:208/230/460/575 V |
| Duty Cycle:60% |
| Weld Process:MIG (GMAW) |
| Wire Size:0.035" - 0.045" |
| Wire Type:Solid, Flux-Cored or Metal-Cored, Aluminum |
| Includes:Gun, Cables, Regulator |
| Input Phase:1-Phase |
| Rated Output:230A/26.5V/60% |
| Output Range:30-300 Amps |
| Wire Feed Speed:50-700 ipm (1.3-17.7 m/min) |
| Dimensions (H X W X D):37.5 in x 18 in x 37.5 in |
| Net Weight:250 lbs (113.4 kg) |
| Max OCV:90V |
| Packaging Description:1 per ea |
