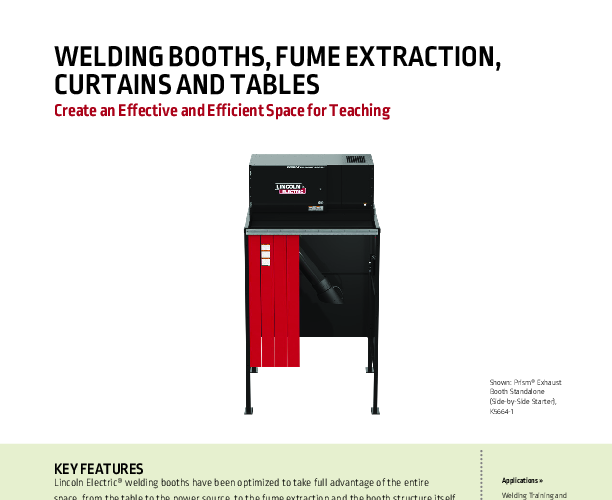

K5664-1 - Prism Exhaust Booth Side-by-Side Starter One-Pak

Comprehensive Industrial Welding Environment Solution

The Lincoln Electric Prism Exhaust Booth (K5664-1) represents a sophisticated approach to facility air quality and workspace management. Designed as a "Side-by-Side Starter" unit, this system serves as the foundational block for creating modular, expandable welding rows in industrial environments. It addresses the critical need for effective fume control without requiring complex HVAC integration or custom fabrication of booth structures. The unit is engineered to be a plug-and-play solution, significantly reducing installation time and facility downtime.

At the core of the Prism Booth is its dual-action extraction capability. The system utilizes a top-mounted Prism fume extraction unit that draws air through two distinct pathways: a Telescopic Counter-Weight Fume Extraction Arm for source capture directly at the arc, and a general exhausting hood that captures residual background fumes. This redundancy ensures maximum particulate removal, helping facilities meet strict OSHA and environmental safety standards. The top-mounted design of the extraction engine preserves valuable floor space, allowing for a compact footprint that maximizes production area density.

This One-Pak configuration is delivered with all necessary components for immediate deployment. It includes robust weld booth walls, a protective weld curtain to shield passersby from UV radiation, and integrated booth lighting to ensure optimal visibility for precision work. The control panel is intuitively placed for easy operator access. Furthermore, the K5664-1 is designed for scalability; it can be seamlessly paired with the K5664-2 Add-On unit to construct continuous rows of booths, sharing common walls to reduce costs and footprint. This modularity makes it an excellent investment for growing fabrication shops and training centers.
