WP-24F - Weldcraft A-80 Flex Air-Cooled TIG Torch Body

Weldcraft WP-24F (A-80 Flex) TIG Torch Body Overview

The Weldcraft WP-24F, now categorized under the A-80 Flex series, is a premium air-cooled TIG torch body designed for precision welding in restricted environments. Engineered by Miller Weldcraft, this torch body serves as a direct replacement for standard WP-24 systems but adds the critical functionality of a flexible neck. This articulation allows the operator to bend the torch head to various angles, facilitating proper electrode positioning in complex pipe clusters, tube assemblies, and intricate fabrication geometries where a rigid torch would be obstructed.

Rated for 80 amps of TIG welding output, the WP-24F utilizes the compact front-end consumables of the 24-series. This series is renowned for its low profile, making it the go-to choice for light-duty applications requiring high dexterity. The torch body is constructed from high-grade copper components to ensure efficient current transfer and heat dissipation, while the exterior is insulated with durable, high-dielectric silicone rubber. This insulation protects the welder from high-frequency voltage leakage and withstands the thermal stresses of continuous welding operations within the rated duty cycle.

As an air-cooled unit, the WP-24F eliminates the need for bulky water coolers and hoses, maintaining a lightweight profile that reduces wrist strain during extended use. It is compatible with standard power cables and handles designed for the 24-series, allowing for seamless integration into existing setups. Whether used for aerospace maintenance, automotive fabrication, or artistic metalwork, the WP-24F provides the reliability and adaptability required for high-quality TIG welding.

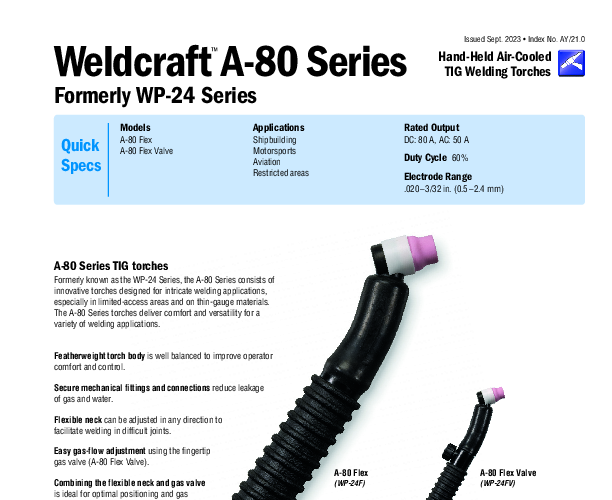

Technical Specifications

• Model: WP-24F (A-80 Flex)
• Amperage Rating: 80A DC / 50A AC
• Cooling: Air-Cooled
• Head Style: Flexible
• Consumable Series: 24 Series
