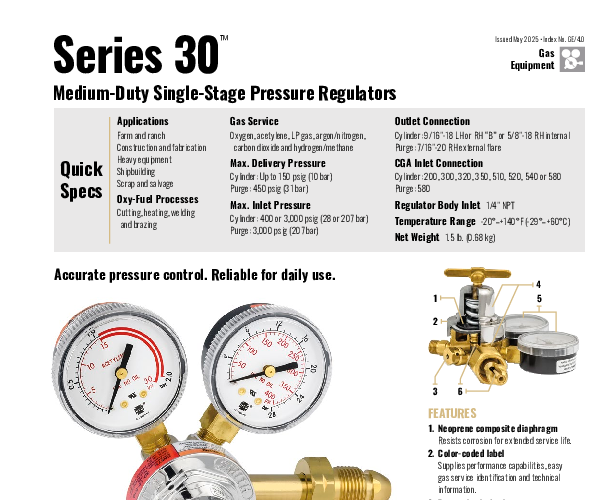

30-450-580 - Smith Series 30 Medium Duty Nitrogen Purge Regulator, 0-450 PSIG, CGA 580

Technical Overview of the Smith 30-450-580 Nitrogen Regulator

The Smith Equipment 30-450-580 is a single-stage, medium-duty nitrogen regulator engineered specifically to meet the rigorous demands of HVAC refrigerant purging and pressure testing applications. This unit is built on the robust Series 30 platform, characterized by its high-flow capability (up to 2800 SCFH) and precision pressure control. The regulator utilizes a CGA 580 inlet connection, making it compatible with standard nitrogen, argon, and helium cylinders, although it is calibrated and labeled primarily for nitrogen service in HVAC contexts.

A critical engineering feature of this model is the proprietary Sure-Seat filtered high-pressure seat assembly. This technology incorporates a copper-nickel filter that encases the high-pressure seat, effectively preventing metal shavings, granular debris, and other contaminants from entering the seating area. This design significantly mitigates the risk of seat failure and creep, which are common issues in field regulators subjected to frequent cylinder changes. The seat itself is constructed for positive gas-tight sealing, ensuring reliable performance over thousands of cycles.

Pressure regulation is managed by a highly durable neoprene composite diaphragm. Unlike standard stainless steel or simple rubber diaphragms, this reinforced laminate material offers an optimal balance of sensitivity and durability, allowing for precise adjustment of outlet pressure throughout the 0-450 PSIG range. The regulator also features a decay/rise compensation design; as cylinder pressure drops, the regulator minimizes the inverse rise in outlet pressure, maintaining a more consistent flow rate without constant manual readjustment.

Safety and structural integrity are paramount in the 30-450-580 design. The body is forged from solid brass, paired with a nickel-plated bonnet to resist environmental corrosion. It includes an external self-reseating relief valve that automatically vents excessive pressure in the event of a surge, protecting the diaphragm and downstream equipment. The 2-inch gauges are housed in polished brass cases and protected by shatter-resistant polycarbonate lenses, ensuring readability and safety in rugged industrial environments.
