Package Price:
$187.51/1 per eaUsually ships within 3-5 business days

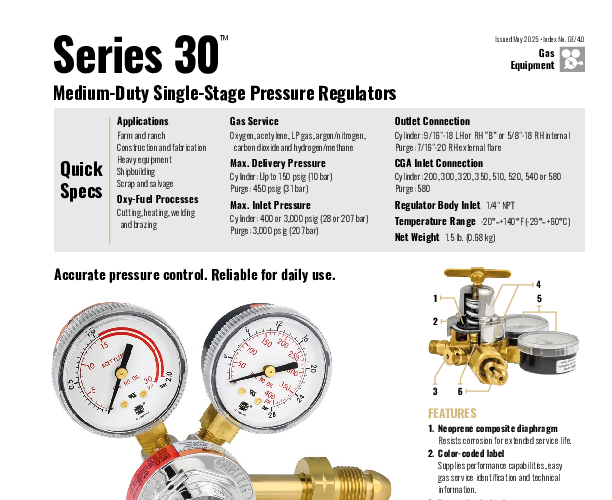

The Smith Equipment 30-15-510 is a premium medium-duty single-stage acetylene regulator designed for industrial environments requiring precision and longevity. Part of the renowned Series 30 line, this regulator is engineered to manage acetylene flow with a maximum delivery pressure of 15 PSIG and is rated for inlet pressures up to 400 PSIG. It features a CGA 510 inlet connection, making it compatible with standard industrial acetylene cylinders (typically those with female valve threads).
At the core of the 30-15-510 is Miller's exclusive Sure Seat™ filtered seat technology. This proprietary design incorporates a filter that prevents microscopic debris and contamination from entering the high-pressure seating area. By eliminating a common cause of regulator failure, Sure Seat significantly extends the service life of the unit and reduces maintenance downtime. The regulator body is forged from rugged brass, paired with a bright nickel-plated bonnet that offers superior corrosion resistance compared to standard brass-only models.
Flow control is managed by a highly durable neoprene composite diaphragm. Unlike stainless steel diaphragms found in high-purity applications, this neoprene composite is specifically selected for industrial welding to provide a flexible, responsive reaction to pressure changes, ensuring a steady flow of fuel gas even as cylinder pressure decays. The regulator is equipped with 2.0-inch polished brass gauges protected by shatter-resistant polycarbonate lenses, ensuring readability in rough shop conditions. An external self-reseating relief valve provides critical safety protection by venting excessive pressure in the event of a surge and automatically resetting, preventing catastrophic damage to the regulator internals.
| Additional Information |
|---|
| Brand:Smith Equipment |
| Cga Fitting:CGA 510 |
| Used On Which Gas:Acetylene |
| Max Outlet:15 PSI |
| Max Inlet:400 PSI |
| Item:Regulator |
| Gas Type:Acetylene |
| Connection Type (CGA):CGA 510 |
| Inlet/Outlet Pressure:Max Inlet: 400 PSIG, Max Delivery: 15 PSIG |
| Gauge Type:2.0 inch Brass with Polycarbonate Lens |
| Body Material:Forged Brass, Nickel-Plated Bonnet |
| Warranty:3 Years |
| Outlet Connection:9/16" - 18 LH |
| Diaphragm Material:Neoprene Composite |
| Packaging Description:1 per ea |
