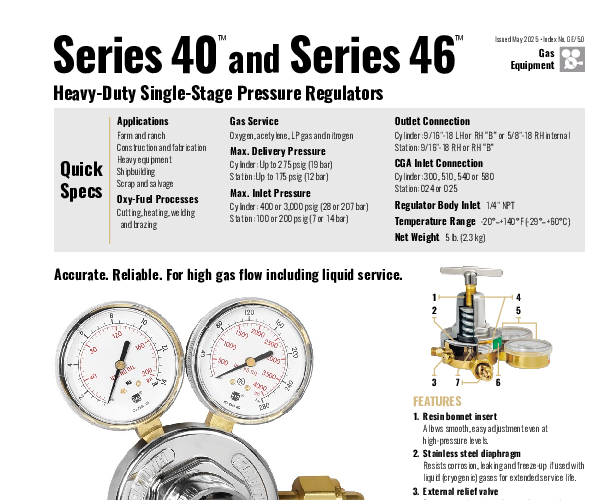

Technical Overview of the Smith 40-275-540 Regulator

The Smith Equipment 40-275-540 is a premium, heavy-duty single-stage oxygen regulator designed for industrial environments requiring high gas flow and substantial delivery pressures. Part of the renowned 40 Series, this unit is engineered to manage delivery pressures ranging from 0 to 275 PSIG, making it suitable for heavy cutting, heating, and other demanding industrial applications. The regulator connects via a standard CGA 540 inlet and is rated for a maximum inlet pressure of 3000 PSIG.

A defining feature of this model is its stainless steel diaphragm. Unlike elastomeric diaphragms, the stainless steel construction provides superior resilience against temperature fluctuations and allows the regulator to be used safely with liquid gases without the risk of freeze-up or premature failure. This material choice also enhances the precision of pressure regulation, ensuring stable flow rates even as cylinder pressure decays.

Durability and safety are core to the 40-275-540's design. The body is machined from rugged brass, while the bonnet features a nickel plating that offers enhanced protection against corrosion and environmental wear. Internally, the regulator utilizes a dual filter system, including Smith's proprietary Sure Seat™ technology, which prevents debris from entering the high-pressure seat area, significantly extending the service life of the component. For safety, an external relief valve is integrated into the body; this valve is designed to vent excessive pressure in the event of a surge and automatically reset, protecting both the equipment and the operator.

Operational adjustments are facilitated by a large, die-cast "T" bar adjusting screw, which provides ample leverage for precise settings. A Delrin™ bonnet insert is utilized to reduce friction, allowing for smooth, effortless adjustments even when the system is under high pressure. The unit is finished with 2-1/2 inch brass gauges protected by shatter-resistant polycarbonate lenses, ensuring readability in harsh shop conditions.
