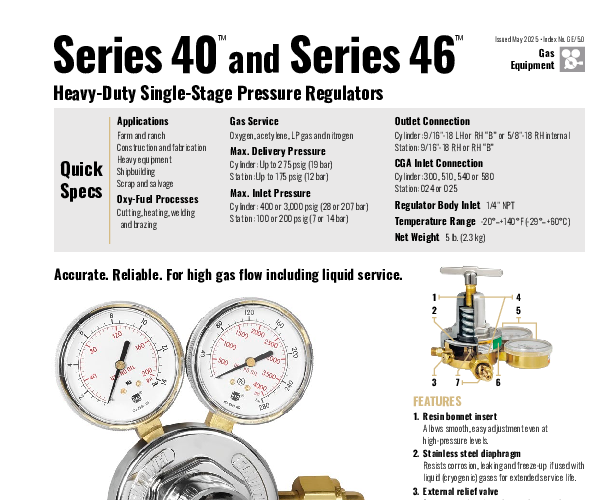

40-15-300S - Smith Series 40 Heavy-Duty Acetylene Regulator CGA 300 with Hard Hat

Precision Engineering for Heavy-Duty Acetylene Control

The Smith Series 40 Heavy-Duty Acetylene Regulator (Model 40-15-300S) represents a significant advancement in gas regulation technology, designed specifically to address the common failure points found in industrial environments. At the core of this regulator is Smith's exclusive Sure Seat filtered seat technology. Debris on the high-pressure seating surface is the leading cause of regulator failure; the Series 40 mitigates this with a super-fine 15-micron nickel-plated bronze filter that fully encapsulates the high-pressure seat. This design effectively blocks external contamination, dramatically extending the service life of the unit and ensuring consistent performance under rigorous conditions.

Engineered for high-flow applications, the Series 40 is capable of delivering flows exceeding 16,000 SCFH, which is up to 25% higher than comparable heavy-duty competitors. This makes it an ideal choice for demanding oxy-fuel cutting, heating, and manifold distribution systems where consistent volume is critical. The regulator features a stainless steel diaphragm, a material choice that offers superior sensitivity and longevity compared to traditional neoprene diaphragms. This construction not only provides precise pressure control but also makes the regulator suitable for use with liquid (cryogenic) gases, resisting the freeze-up and cracking that can occur in extreme thermal cycling.

Accuracy is paramount in the Series 40 design. It provides extremely stable outlet pressure, maintaining approximately 2% accuracy of the actual gauge reading at the center of the scale. The decay/rise characteristic is exceptionally low, registering only a 0.4 PSIG outlet rise per 100 PSIG of tank pressure decay. This stability ensures that flame characteristics remain constant as the cylinder empties, reducing the need for frequent torch adjustments. Safety features include an external relief valve that protects the regulator from high-pressure surges by releasing excess pressure and automatically resetting, eliminating the need for diaphragm replacement after an over-pressurization event.

The physical construction is equally robust, featuring a forged brass body and a nickel-plated bonnet that resists corrosion in harsh industrial atmospheres. The included HB190 Hard Hat gauge guard is a critical addition, wrapping the 2.5-inch brass gauges in a high-strength steel shell to prevent damage from drops and impacts. With a CGA 300 inlet connection and a 0-15 PSIG delivery range, this regulator is a definitive solution for professional acetylene management.
