40-15-510 - Smith Series 40 Heavy Duty Acetylene Regulator, CGA 510

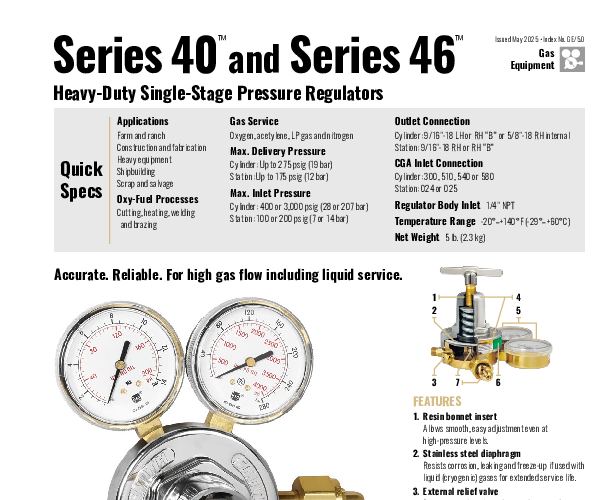

Smith Equipment Series 40 Heavy Duty Acetylene Regulator

The Smith Equipment 40-15-510 is a premium, heavy-duty single-stage acetylene regulator designed to meet the rigorous demands of industrial manufacturing, construction, and fabrication environments. Part of the renowned Series 40 line, this regulator is engineered to address the most common causes of equipment failure while providing exceptional flow characteristics and pressure stability. At the core of its design is the exclusive Sure Seat™ filtered seat technology. This innovative feature utilizes a super-fine 15-micron nickel-plated bronze filter to encapsulate the high-pressure seat, effectively preventing debris and contamination from entering the seating area. Since debris is the number one cause of regulator failure, this technology significantly extends the service life of the unit, reducing maintenance costs and downtime.

Constructed with a rugged brass body and a nickel-plated bonnet, the 40-15-510 is built to withstand corrosive atmospheres and rough handling. It features a large stainless steel diaphragm, a material choice that offers superior sensitivity and durability compared to traditional neoprene diaphragms. This stainless steel construction ensures precise outlet pressure control, maintaining accuracy within approximately ±2% of the gauge reading. Furthermore, the diaphragm design eliminates the need for replacement in the event of over-pressurization, adding another layer of reliability. The regulator is equipped with 2.5-inch brass case gauges protected by shatter-resistant polycarbonate lenses, ensuring visibility and safety in hazardous work zones.

Safety and ease of use are paramount in the Series 40 design. An external relief valve is integrated to protect the regulator from damage due to inadvertent high-pressure surges, automatically resetting after the pressure is relieved. The die-cast "T" bar adjusting screw, combined with a Delrin bonnet insert, allows for smooth and effortless pressure adjustments, even when the system is under load. With a delivery pressure range of 0-15 PSIG and a CGA 510 inlet connection, this regulator is perfectly suited for heavy-duty oxy-acetylene cutting, welding, and heating applications where consistent flow and unwavering reliability are required.
