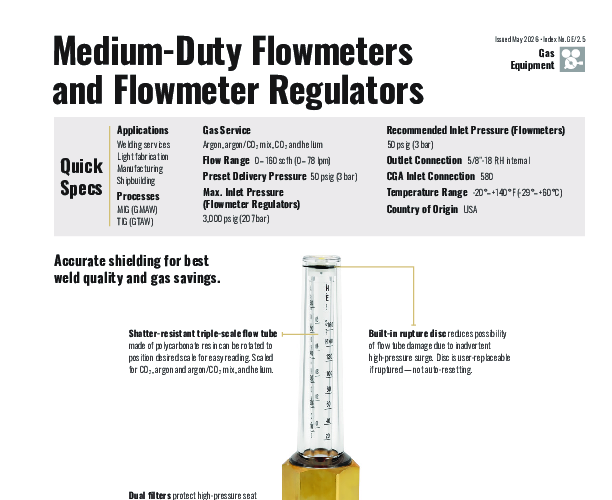

Technical Overview of the Smith Equipment H2230A Flowmeter

The Smith Equipment H2230A is a standard duty flowmeter engineered for precise shielding gas regulation in industrial welding environments. Designed to operate at an inlet pressure of 50 PSIG, this unit is versatile enough to be attached directly to regulators or integrated into shop pipeline installations via its standard 1/4-inch (6mm) NPT female inlet. The core of the device is its high-precision flow tube, manufactured from shatter-resistant polycarbonate resin (Lexan). This material choice ensures longevity and safety in rugged shop conditions where glass tubes might fail.

Technically, the H2230A stands out due to its multi-gas calibration. The flow tube features a triple-scale reading capability, providing accurate flow measurements for Argon, Helium, and Argon/CO2 mixtures without the need for changing tubes or complex conversion factors. The scale is expanded on an extra-long tube, offering readability and accuracy within 3% (to 5%) of the full-scale reading. A critical engineering feature is the exclusive ball-centering guide. In standard flowmeters, the ball float can drift off-center, allowing gas to bypass and resulting in erroneous flow indications. The Smith design keeps the ball strictly centered, ensuring that the visual reading corresponds accurately to the actual gas flow, even if the flowmeter is slightly tipped or subjected to vibration.

Maintenance and safety are also addressed in the H2230A's design. It utilizes a packless O-ring flow tube seal, which significantly reduces the need for maintenance compared to traditional packing nuts. Furthermore, a built-in rupture disc is integrated into the assembly to protect the flow tube and housing from catastrophic damage in the event of a high-pressure inlet surge. The precision flow-adjustment valve allows operators to dial in exact CFH settings, optimizing gas coverage for MIG and TIG processes while minimizing waste.
