H1400-50 - Smith H1400 Series 50 SCFH Fixed Flow Orifice Adaptor

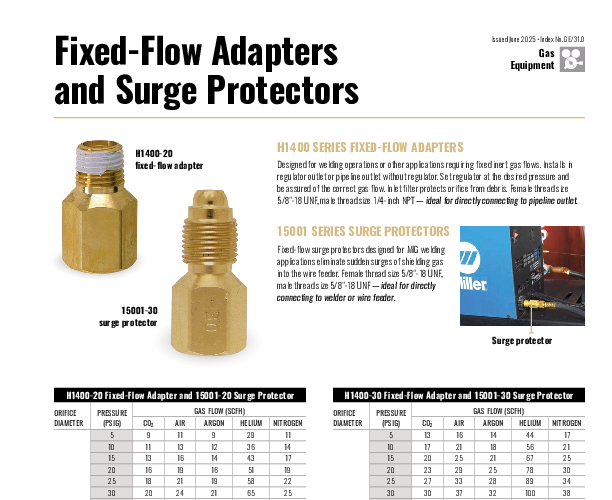

Technical Overview of the Smith H1400-50 Fixed Flow Adaptor

The Smith Equipment H1400-50 is a precision-engineered fixed flow adaptor designed to regulate gas delivery in industrial welding and specialty gas applications. Engineered to provide a constant flow rate of 50 Standard Cubic Feet per Hour (SCFH), this device relies on a calibrated orifice sized at .042 inches. For accurate operation, the upstream pressure must be maintained at a constant 30 PSIG. This specific pressure requirement ensures that the flow characteristics across the orifice remain stable, providing reliable gas delivery for critical processes.

Constructed for versatility and durability, the H1400-50 features a dual-connection interface. It includes a 5/8"-18 UNF connection, compatible with standard CGA regulator outlets, and a 1/4" NPT Male thread, allowing for direct installation into pipeline station drops or manifold systems. A critical feature of this unit is the integrated inlet filter. This sintered or mesh filter is positioned to intercept particulate matter and debris before it reaches the precision orifice. In industrial environments where pipeline scale or regulator seat debris can be present, this filter is essential for maintaining the accuracy of the flow rate and preventing complete blockage of the device.

This adaptor is categorized under the H1400 Series, which serves as a robust solution for fixed-flow requirements. By eliminating the variable needle valve found in standard flowmeters, the H1400-50 removes the variable of human intervention in flow setting. This is particularly valuable in large-scale manufacturing environments where standard operating procedures dictate specific gas flow rates to ensure metallurgical compliance. The unit is compatible with inert shielding gases typically used in MIG (GMAW) and TIG (GTAW) welding, such as Argon and Argon/CO2 mixtures, provided the specific gravity corrections are considered if deviating from the calibration gas.

Installation is straightforward but requires adherence to the pressure specification. The regulator or pipeline feeding the adaptor must be set to 30 PSIG. If the inlet pressure deviates, the output flow will shift accordingly, as the device functions as a critical flow orifice. The robust brass body ensures resistance to corrosion and mechanical damage, making it suitable for harsh shop floor environments.
