MC12-5 - Smith MC12 Series Size 5 Acetylene Cutting Tip

Technical Overview of the Smith MC12-5 Acetylene Cutting Tip

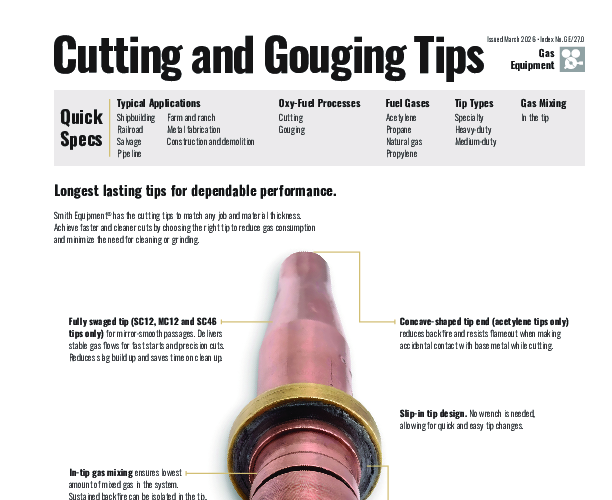

The Smith MC12-5 is a precision-engineered medium-duty cutting tip designed for oxy-acetylene applications. As part of the MC12 Series, this Size 5 tip is capable of severing steel ranging from 2-1/2 inches to 6 inches (152 mm) in thickness, making it the largest capacity tip in its specific series for compatible medium-duty attachments. The tip is constructed from high-quality copper that is swaged to create ultra-smooth internal gas passages. This manufacturing process minimizes turbulence in the gas flow, resulting in cleaner cuts with less slag accumulation and faster cutting speeds compared to drilled tips.

A defining technical feature of the MC12-5 is Smith's proprietary "Slip-In" design. Unlike traditional threaded tips that require a wrench for installation—often leading to stripped threads or damaged torch heads—the MC12 series utilizes a hand-tightened mechanism. The tip slides into the torch head and is secured by a nut, compressing a soft seat that forms a positive, leak-proof seal. This design also incorporates a recessed seat within the tip itself, protecting critical sealing surfaces from nicks and drops when the tip is not installed. This significantly extends the service life of both the consumable tip and the torch attachment.

Safety is paramount in the design of the MC12-5. It features In-Tip Gas Mixing, a technology where the preheat oxygen and acetylene are kept separate until they reach the mixing chamber located inside the tip itself. This contrasts with tube-mixing torches where gases mix in the handle or attachment. By mixing gases only at the point of use, the volume of mixed explosive gas is kept to an absolute minimum. In the event of a flashback, the sustained backfire can be isolated within the tip, protecting the operator and the expensive torch hardware from damage. The tip requires a cutting oxygen flow rate of 249-267 SCFH, a preheat oxygen flow of 14 SCFH, and a preheat acetylene flow of 12 SCFH for optimal performance.
