SC12-5 - Smith SC12-5 Heavy Duty Acetylene Cutting Tip, Size 5

Smith SC12-5 Heavy Duty Acetylene Cutting Tip

The Smith SC12-5 is a premium heavy-duty cutting tip engineered for professional oxy-acetylene cutting applications. Part of the renowned SC12 Series, this Size 5 tip is designed to handle substantial material thicknesses, offering a cutting range of approximately 6 to 8 inches (152 mm to 203 mm). It is manufactured specifically for use with Smith Equipment's heavy-duty combination torches, hand cutting torches (including the "Gas Axe"), and compatible machine torches.

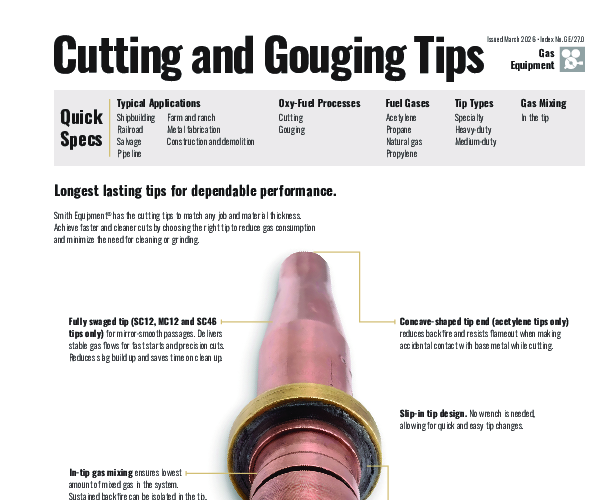

Technically, the SC12-5 stands out due to its swaged copper construction. Unlike drilled tips, the swaging process creates ultra-smooth internal gas passages that minimize turbulence. This results in a stable, high-velocity preheat flame and a cutting stream that produces clean, precise cuts with significantly reduced slag accumulation. The tip features Smith's proprietary "Slip-In" design, which utilizes a recessed, heat-resistant seat. This allows the operator to install the tip by hand-tightening only—no wrench is required—ensuring a perfect, positive seal every time while protecting the seating surface from nicking and wear.

Safety is paramount in the design of the SC12-5. It employs the "In-Tip Mix" principle, where oxygen and acetylene are mixed only within the tip itself, rather than in the torch head or tubes. This configuration greatly reduces the volume of mixed gas present in the system, thereby minimizing the potential for flashback and enhancing operator safety. The tip is suitable for both general hand cutting and machine cutting operations where excellent preheat characteristics are required. Users should note that the high gas withdrawal rates associated with a tip of this size may require cylinder manifolding to prevent acetone withdrawal from acetylene cylinders.
